Powder to Electrode™ Dry Coating Technology: A Deep Dive

AM Batteries has pioneered a revolutionary dry, roll-to-roll electrode manufacturing process called Powder to Electrode™ Dry Coating Process, providing turn-key solutions from raw materials to rolls of electrode while eliminating toxic solvents like NMP, energy-intensive ovens, and complex solvent recovery systems. Our technology reduces manufacturing costs, improves battery performance, and enables compatibility with a wide range of chemistries, including next-generation systems.

Core Innovations

Dry Powder Mixing

Materials: Compatible with NMC, NCA, LFP, LCO, graphite, SiOx/SiC
Binder Flexibility: Supports PFAS and non-PFAS binders
Process: Energy-efficient, non-agglomerating powders, suitable for continuous feeding and inline control

Precision Dry Powder Coating via Dry Deposition

Edge Control: Good edge fidelity for electrode design
Layering: Supports thick, thin, gradient, and dual-side designs
Microstructure: Enables low-tortuosity electrodes for superior ionic/electronic transport

Tunable Compression & Calendering

Electrode Range: ~30-200μm+
Tortuosity: Lower than slurry, promoting better rate and cycling performance
Customization: Optimized for energy or power density

SEM Image
EPL Dry Electrode (Edge View)

SEM Image (Cross-section, BSD) Sample Density: 3.79 g/cm³

Electrochemical & Structural Advantages

Rate Capability

High power due to fast ion transport and low internal resistance

Cycle Life

Stable cycle life from uniform structure and over 1000 cycles comparable to wet

Wetting & Activation

Rapid electrolyte wetting due to open pore structure

Electrochemical Testing – Dry vs Wet

Electrochemical Testing – Dry vs Wet

Discharge rate test comparing dry vs. wet electrode with identical formulation

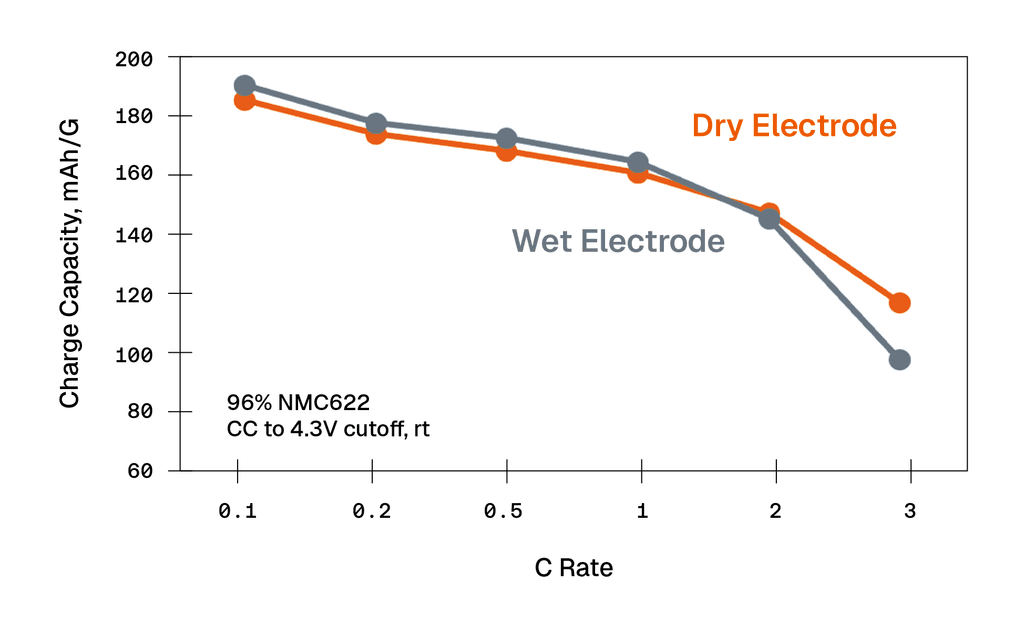

Charge rate test comparing dry vs. wet electrode with identical formulation
Cycle life test of dry vs. wet electrode with identical formulation

Chemistries Supported

Cathodes

NMC (all ratios), LCO, LFP, NCA

Anodes

Graphite, SiOx/SiC

Future

Sodium-ion, solid-state, conversion-type materials

Advantages Over Competing Dry Tech


AMB Powder to Electrode™ Dry Coating Process
Other Dry Methods
Mixing Time
Minutes
Hours
Binder Compatibility
Broad
Narrow (PTFE Limited)
Wetting Behavior
Fast
Slow
Structure Control
Highly Tunable
Rigid
Electrochemical Performance
Validated to Match or Exceed
Often Inferior
